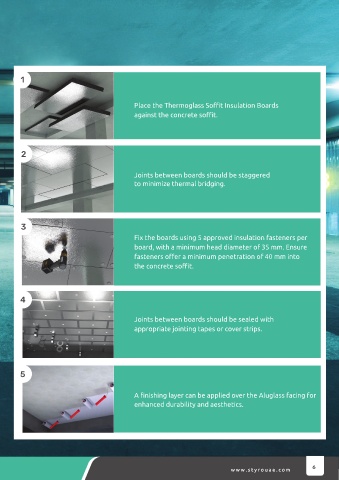

Page 9 - STYRO Soffit

1

Place the Thermoglass Soffit Insulation Boards
against the concrete soffit.

2

Joints between boards should be staggered
to minimize thermal bridging.

3
Fix the boards using 5 approved insulation fasteners per
board, with a minimum head diameter of 35 mm. Ensure
fasteners offer a minimum penetration of 40 mm into
the concrete soffit.

4

Joints between boards should be sealed with
appropriate jointing tapes or cover strips.

5

A finishing layer can be applied over the Aluglass facing for
enhanced durability and aesthetics.
