Page 5 - STYRO Soffit
P. 5

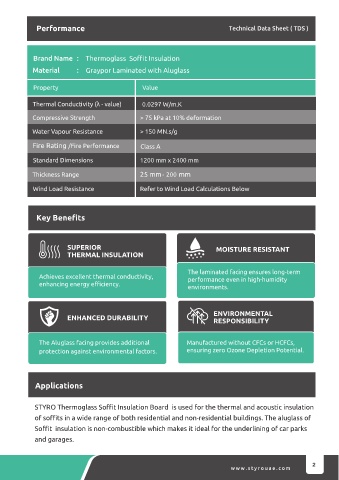

Performance Technical Data Sheet ( TDS )
Brand Name : Thermoglass Soffit Insulation
Material : Graypor Laminated with Aluglass
Property Value
Thermal Conductivity (λ - value) 0.0297 W/m.K
Compressive Strength > 75 kPa at 10% deformation
: Thermoglass Soffit Insulation
Water Vapour Resistance > 150 MN.s/g
:
Fire Rating /Fire Performance Class A
Standard Dimensions 1200 mm x 2400 mm
Thickness Range 25 mm - 200 mm
Wind Load Resistance Refer to Wind Load Calculations Below
Key Benefits
SUPERIOR MOISTURE RESISTANT
THERMAL INSULATION
The laminated facing ensures long-term
Achieves excellent thermal conductivity, performance even in high-humidity
enhancing energy efficiency. environments.
ENVIRONMENTAL
ENHANCED DURABILITY RESPONSIBILITY
The Aluglass facing provides additional Manufactured without CFCs or HCFCs,
protection against environmental factors. ensuring zero Ozone Depletion Potential.
Applications
STYRO Thermoglass Soffit Insulation Board is used for the thermal and acoustic insulation
of soffits in a wide range of both residential and non-residential buildings. The aluglass of
Soffit insulation is non-combustible which makes it ideal for the underlining of car parks
and garages.
www.styrouae.com 2
